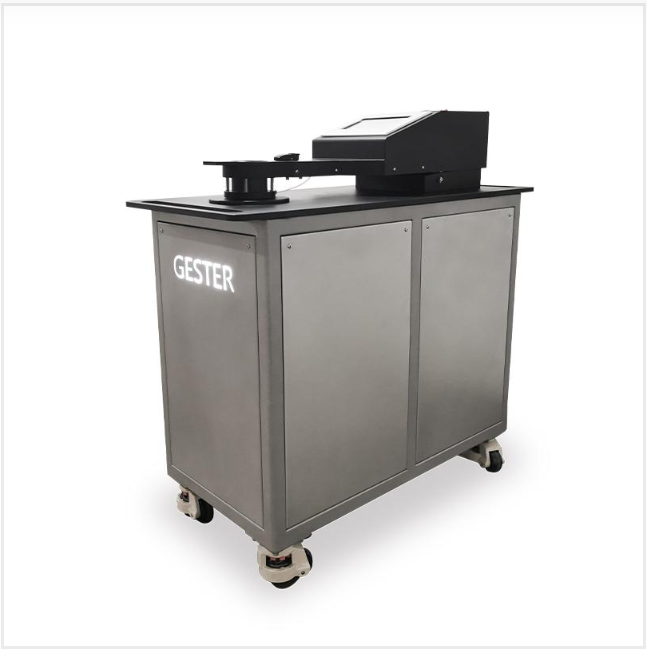

AIR PERMEABILITY TESTER FOR FABRICS AND FILMS – GESTER

MODEL: GT-C27

FEATURES

• 7-inch touchscreen for operation, with computer connectivity.
• Wide measurement range with automatic detection.
• Automatic test head size recognition, with easy and convenient replacement.
• High-precision pressure and differential pressure sensors from Dwyer, USA, ensure accurate data acquisition.
• Automatic cleaning of the orifice plate helps maintain measurement accuracy.
• Built-in thermal printer for printing test results.
• Microcontroller-based processing displays results directly without manual calculations.
• Seven measurement units: mm/s, m³/(m²·min), cm³/(cm²·s), m³/(m²·h), cfm, L/(dm²·min), and L/(m²·s).
• Pneumatically operated clamping arm automatically lowers and raises.
• Supplied with 11 nozzles of different sizes to accommodate various specimens.

STANDARDS

GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096, AFNOR G 07-111, EDANA 140.1, ISO 9073-15.

APPLICATIONS

The instrument measures the air permeability of woven fabrics, knitted fabrics, nonwoven fabrics, protective clothing, industrial filter materials, and similar materials.

TECHNICAL SPECIFICATIONS

ACCESSORIES
